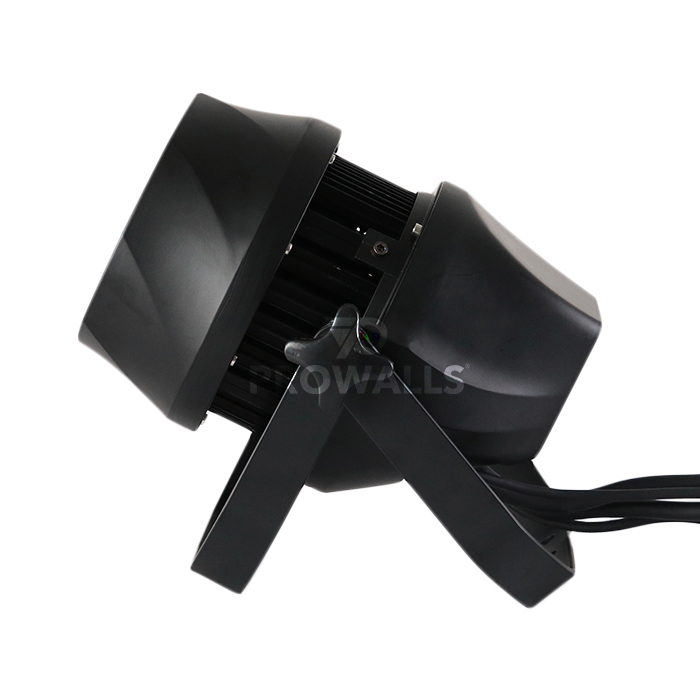

IP65 Outdoor 200W show portable professional led light

IP65 Rated, 200W COB LED Engine, Strobe

*Advanced High-power 200W COB LED Engine Technology (Chip On Board)
*IP65 Outdoor Rated
*High quality materials, durable and portable
*Great for performance stages, theatrical productions and special effects productions
*Requires almost no maintenance–low heat, low power consumption
*Flicker Free operation
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Lite Cannon COB

  • Prowalls

  • LED Screen


Description

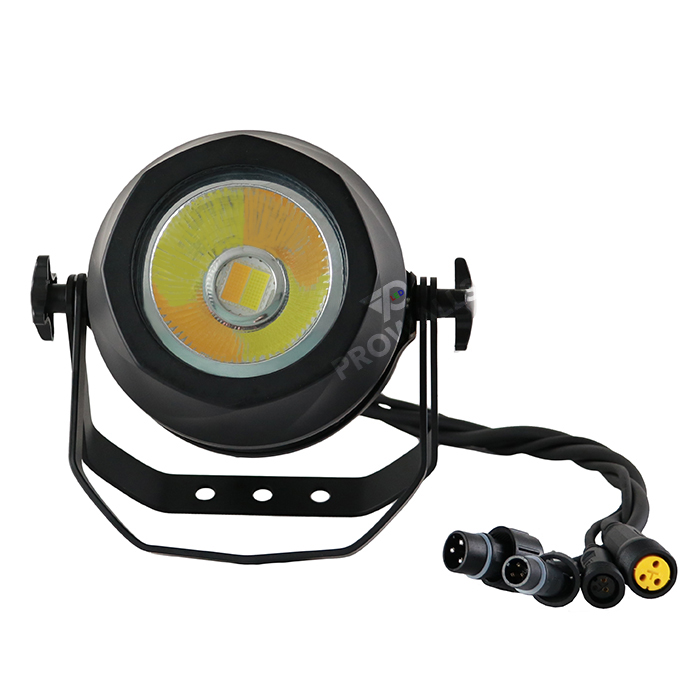

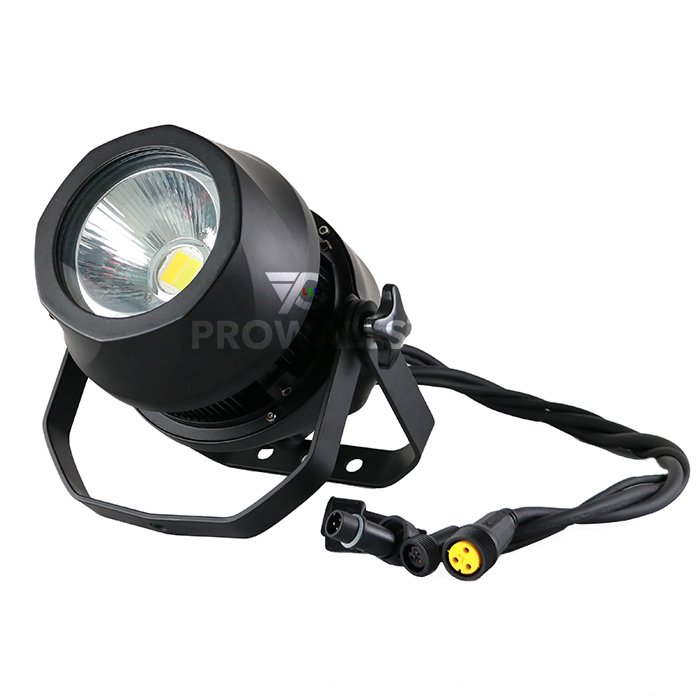

Lite Cannon COB is an LED Par Light Fixture from PROWALLS that offers powerful ultraviolet light production using state of the art COB LEDs and solid state electronics. Made from high quality materials. It creates wash lighting, pulse, and strobe effects for any event needed. Be easily controllable, and be durable and portable, you can create the perfect atmosphere. It excels in providing you with powerful light effects with built-in features that allow for the greatest ease of operation.


Features

*Advanced High-power 200W COB LED Engine Technology (Chip On Board)

*IP65 Outdoor Rated

*High quality materials, durable and portable

*Great for performance stages, theatrical productions and special effects productions

*Requires almost no maintenance–low heat, low power consumption

*Flicker Free operation


Specification


SOURCE

Advanced High-power 200W COB LED Engine (Chip On Board)

60,000 Hours LED Lifetime (May vary depending on different factors)


FUNCTION

Advanced High-power 200W COB LED Engine Technology (Chip On Board)

High quality materials, durable and portable

Great for performance stages, theatrical productions and special effects productions

Requires almost no maintenance – low heat, low power consumption

Flicker Free operation

0-100% linear Dimming

Variable Dimming Curve, LED pulse and 0-10t/s Strobe


CONTROL & CONNECTIONS

(3) DMX Channel Modes (2/4/6channels)

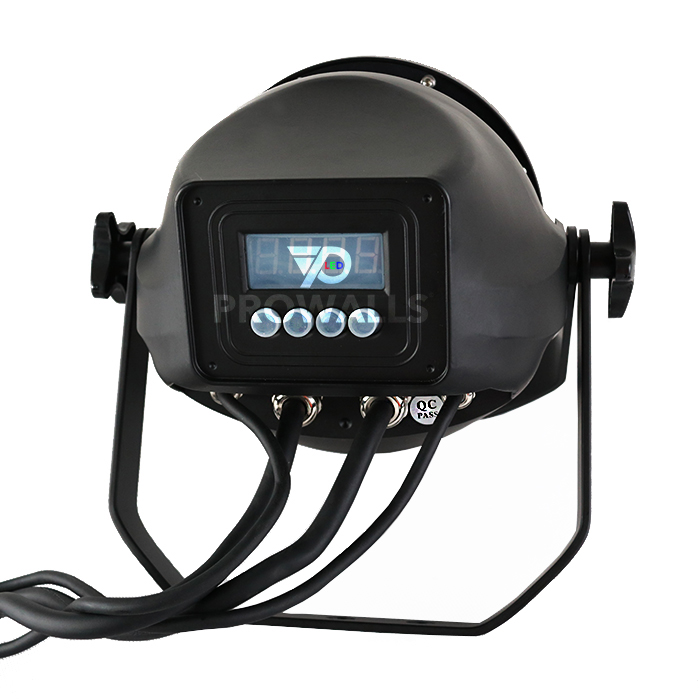

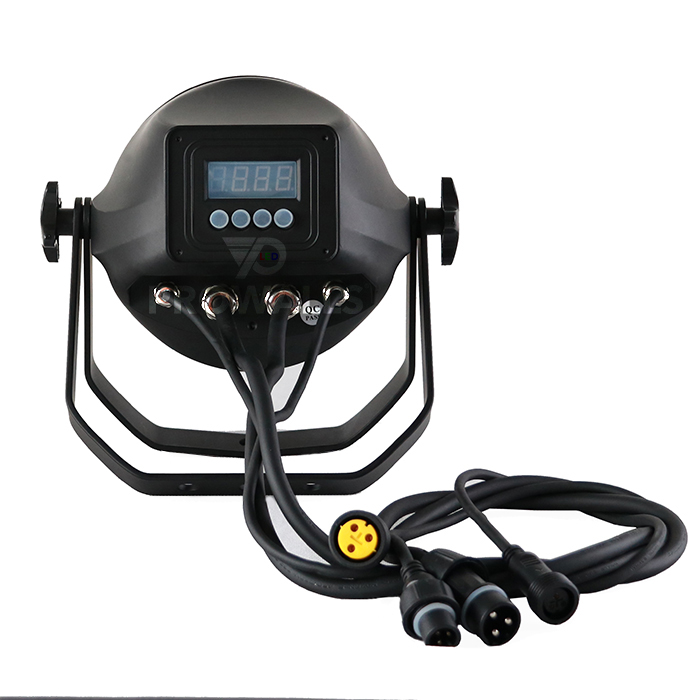

LCD Menu Display

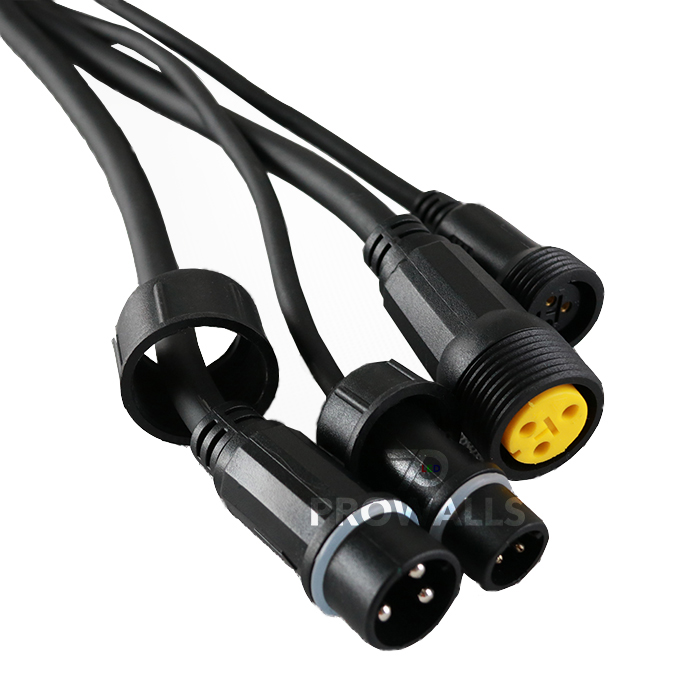

IP Rated 3pin DMX In/Out

IP Rated PowerCON Power In/Out

DMX512, Auto run, Sound, Master/Slave, Manual operation


THERMAL & ELECTRICAL

260W max Power Consumption

Input voltage: 100-240V AC/50-60 Hz


APPROVALS / RATINGS

CE | RoHs Compliant | IP65


SIZE / WEIGHT

10.4" (265mm) Length

10.4" (265mm) Width

17.7" (450mm) Height

22 lbs (10 kg) Weight



CLEANING

Frequent cleaning is recommended to insure proper function, optimized light output,

and an extended life. The frequency of cleaning depends on the environment in

which the fixture operates: damp, smoky or particularly dirty environments can

cause greater accumulation of dirt on the fixture's optics.

• Clean the external lens surface at least every 20 days with a soft cloth to avoid

dirt/debris accumulation. Never use alcohol, solvents, or ammonia based

cleaners.


MAINTENANCE

• Regular inspections are recommended to insure proper function and extended

life. There are no user serviceable parts inside this fixture, please refer all other

service issues to Prowalls. Should you need any

spare parts, please order genuine parts from us.

• Please refer to the following points during routine inspections:

• A detailed electric check by an approved electrical engineer every 3 months, to

make sure the circuit contacts are in good condition and prevent overheating.

• Be sure all screws and fasteners are securely tightened at all times. Lose screws

may fall out during normal operation resulting in damage or injury.

• Check for any deformations on the housing, color lenses, rigging hardware and

rigging points (ceiling, suspension, trussing). Deformations in the housing could

allow for dust to enter into the fixture. Damaged rigging points or unsecured

rigging could cause the fixture to fall and seriously injure a person(s).

• Inspect all moving parts and make sure there are no signs of wear and

rotate/move without imbalances.

• Electric power supply cables must not show any damage, material fatigue or

sediments. Never remove the ground prong from the power cable.
